CAD Data for Nutrunners

Handheld Nutrunner | Angle Nutrunner HSXBW

Cordless Angle Nutrunner

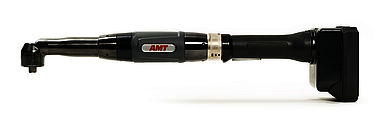

Cordless Angle Nutrunner - Type HSXBW
Reaction Torque Sensor
Size 1 (up to 95 Nm)
STEP Type Ident-No. Torque Torque Range Idle Speed STEP
  HSXBW1015WV14 70122784 15 Nm 4 - 15 Nm 592 1/min Download
  HSXBW1025WV38 70122785 25 Nm 7 - 25 Nm 366 1/min Download
  HSXBW1039WV38 70122786 39 Nm 10 - 39 Nm 242 1/min Download
  HSXBW1050WV38 70122787 50 Nm 13 - 50 Nm 185 1/min Download
  HSXBW1064WV38 70122788 64 Nm 16 - 64 Nm 138 1/min Download
  HSXBW1095WV12 70122789 95 Nm 24 - 95 Nm 94 1/min Download
Cordless Angle Nutrunner with GyroFlex
Cordless Angle Nutrunner with GyroFlex - Type HSXBW
Reaction Torque Sensor
Size 1 (up to 95 Nm)
STEP Type Ident-No. Torque Torque Range Idle Speed STEP
HSXBW1015WV14GF 70122808 15 Nm 4 - 15 Nm 592 1/min
  HSXBW1025WV38GF 70122809 25 Nm 7 - 25 Nm 366 1/min Download
  HSXBW1039WV38GF 70122810 39 Nm 10 - 39 Nm 242 1/min Download
HSXBW1050WV38GF 70122811 50 Nm 13 - 50 Nm 185 1/min
HSXBW1064WV38GF 70122812 64 Nm 16 - 64 Nm 138 1/min
HSXBW1095WV12GF 70122813 95 Nm 24 - 95 Nm 94 1/min
Cordless Angle Nutrunner High-Torque
Cordless Angle Nutrunner High-Torque - Type HSXBW
Reaction Torque Sensor
Size 1 (up to 350 Nm)
STEP Type Ident-No. Torque Torque Range Idle Speed STEP
  HSXBW1200WV34 70261140 200 Nm 50 - 200 Nm 25 1/min Download
  HSXBW1250WV34 70261141 250 Nm 63 - 250 Nm 20 1/min Download
  HSXBW1350WV34 70261142 350 Nm 88 - 350 Nm 14 1/min Download
Cordless Angle Nutrunner
Cordless Angle Nutrunner - Type HSXBW
Size 1 (up to 95 Nm)
Reaction Torque Sensor, Display
STEP Type Ident-No. Torque Torque Range Idle Speed STEP
  HSXBW1015WV14D 70122796 15 Nm 4 - 15 Nm 592 1/min Download
  HSXBW1025WV38D 70122797 25 Nm 7 - 25 Nm 366 1/min Download
HSXBW1039WV38D 70122798 39 Nm 10 - 39 Nm 242 1/min
  HSXBW1050WV38D 70122799 50 Nm 13 - 50 Nm 185 1/min Download
  HSXBW1064WV38D 70122800 64 Nm 16 - 64 Nm 138 1/min Download
  HSXBW1095WV12D 70122801 95 Nm 24 - 95 Nm 94 1/min Download
Reaction Torque Sensor, display - scanner
STEP Type Ident-No. Torque Torque Range Idle Speed STEP
  HSXBW1015WV14DS 70122802 15 Nm 4 - 15 Nm 592 1/min Download
  HSXBW1025WV38DS 70122803 25 Nm 7 - 25 Nm 366 1/min Download
HSXBW1039WV38DS 70122804 39 Nm 10 - 39 Nm 242 1/min
  HSXBW1050WV38DS 70122805 50 Nm 13 - 50 Nm 185 1/min Download
  HSXBW1064WV38DS 70122806 64 Nm 16 - 64 Nm 138 1/min Download
  HSXBW1095WV12DS 70122807 95 Nm 24 - 95 Nm 94 1/min Download
Reaction Torque Sensor, Fastener location lighting
STEP Type Ident-No. Torque Torque Range Idle Speed STEP
  HSXBW1015WV14B 70122790 15 Nm 4 - 15 Nm 592 1/min Download
  HSXBW1025WV38B 70122791 25 Nm 7 - 25 Nm 366 1/min Download
  HSXBW1039WV38B 70122792 39 Nm 10 - 39 Nm 242 1/min Download
  HSXBW1050WV38B 70122793 50 Nm 13 - 50 Nm 185 1/min Download
  HSXBW1064WV38B 70122794 64 Nm 16 - 64 Nm 138 1/min Download
  HSXBW1095WV12B 70122795 95 Nm 24 - 95 Nm 94 1/min Download
Reaction Torque Sensor, Fastener location lighting and display
STEP Type Ident-No. Torque Torque Range Idle Speed STEP
HSXBW1015WV14BD 70122814 15 Nm 4 - 15 Nm 592 1/min
HSXBW1025WV38BD 70122815 25 Nm 7 - 25 Nm 366 1/min
HSXBW1039WV38BD 70122816 39 Nm 10 - 39 Nm 242 1/min
HSXBW1050WV38BD 70122817 50 Nm 13 - 50 Nm 185 1/min
HSXBW1064WV38BD 70122818 64 Nm 16 - 64 Nm 138 1/min
HSXBW1095WV12BD 70122819 95 Nm 24 - 95 Nm 94 1/min
Reaction Torque Sensor, Fastener location lighting and display-scanner
STEP Type Ident-No. Torque Torque Range Idle Speed STEP
HSXBW1015WV14BDS 70122820 15 Nm 4 - 15 Nm 592 1/min
HSXBW1025WV38BDS 70122821 25 Nm 7 - 25 Nm 366 1/min
HSXBW1039WV38BDS 70122822 39 Nm 10 - 39 Nm 242 1/min
HSXBW1050WV38BDS 70122823 50 Nm 13 - 50 Nm 185 1/min
HSXBW1064WV38BDS 70122824 64 Nm 16 - 64 Nm 138 1/min
HSXBW1095WV12BDS 70122825 95 Nm 24 - 95 Nm 94 1/min
Reaction Torque Sensor, telescope installation
STEP Type Ident-No. Torque Torque Range Idle Speed STEP
HSXBW1015WV14T 70122826 15 Nm 4 - 15 Nm 592 1/min
HSXBW1025WV38T 70122827 25 Nm 7 - 25 Nm 366 1/min
HSXBW1039WV38T 70122828 39 Nm 10 - 39 Nm 242 1/min
HSXBW1050WV38T 70122829 50 Nm 13 - 50 Nm 185 1/min
HSXBW1064WV38T 70122830 64 Nm 16 - 64 Nm 138 1/min
HSXBW1095WV12T 70122831 95 Nm 24 - 95 Nm 94 1/min
