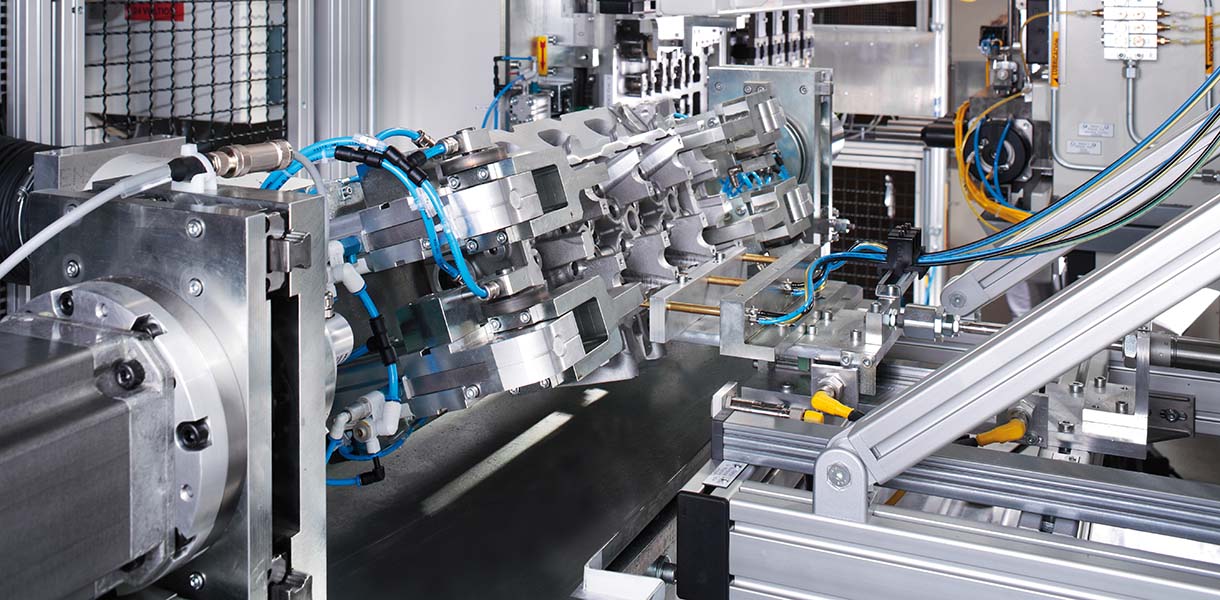

Assembly Machines for Cylinder Heads and Motor Blocks
Flexible and Productive
In the production lines for cylinder heads and motor blocks, in addition to the pure cutting processes, there are also several assembly and testing operations that are performed on highly automated AMT systems. We are one of the leading providers for these systems with many years of experience.

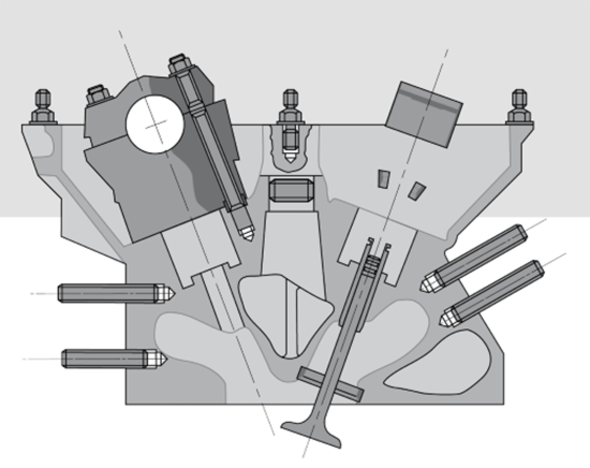

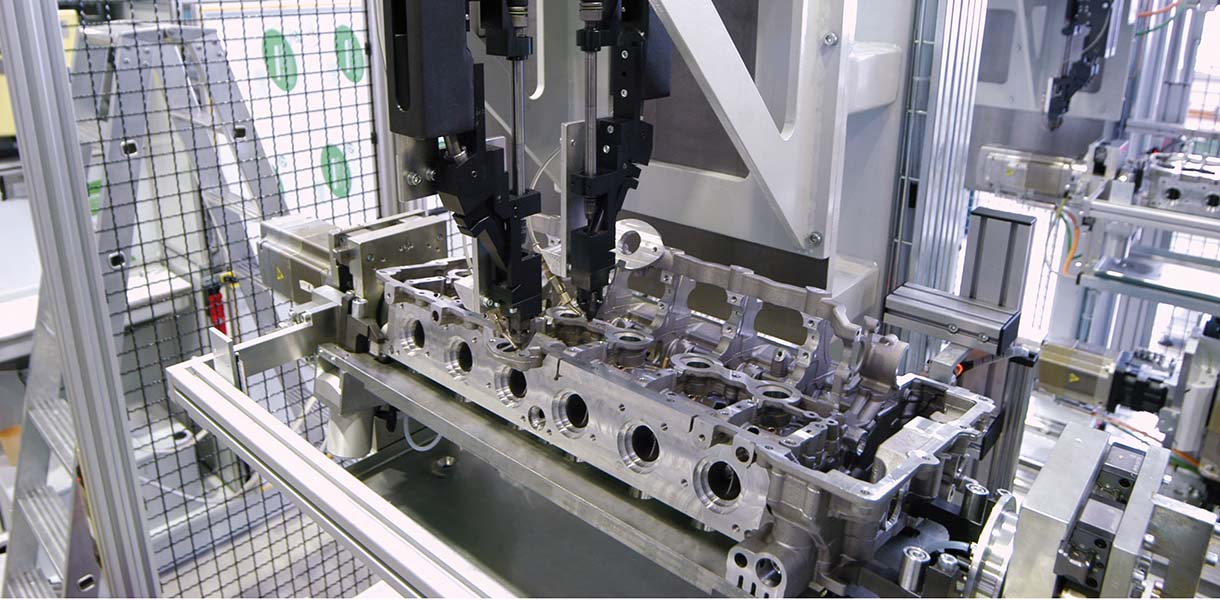

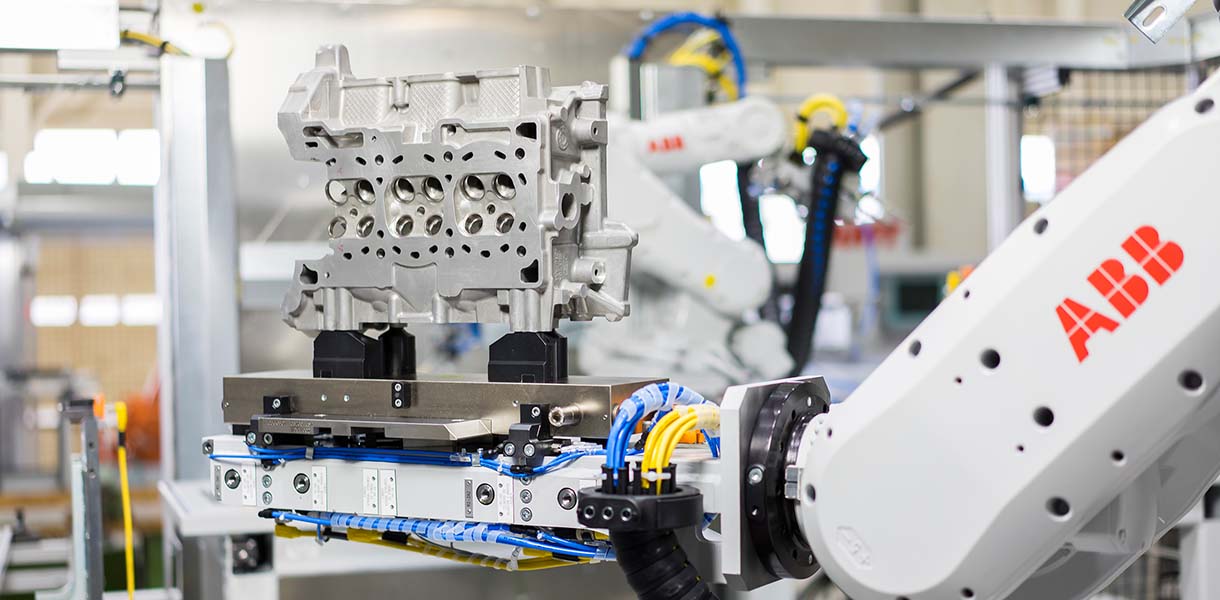

Cylinder Head - Assembly Machines
We offer assembly systems for the following assembly operations:
- Assembly / disassembly of adapter plates or zero point clamping systems
- Insertion of valve seats and valve guides with or without nitrogen cooling
- Assembly of camshafts - cam caps insert and tighten with screws
- Assembly of studs
- Assembly of cap plugs (balls, cap, KOENIG Expander)
- Leak test
- End of line inspection station

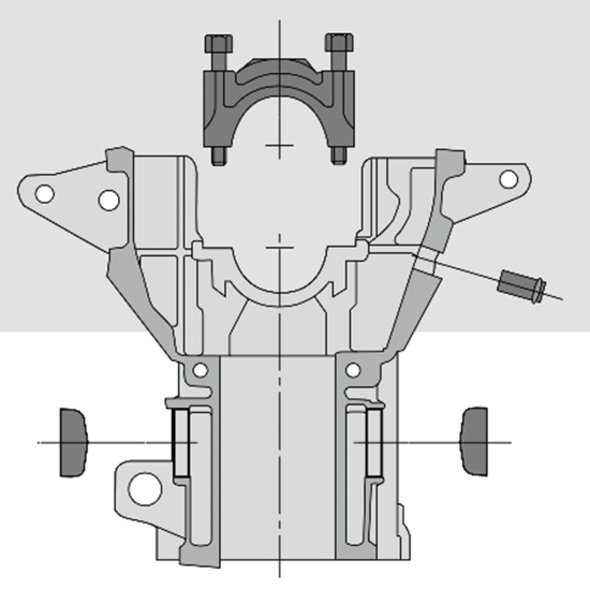

Motor Blocks - Assembly Machines
We offer assembly systems for the following assembly operations:
- Assembly / disassembly of adapter plates or zero point clamping systems
- Assembly of cylinder liners
- Assembly / disassembly of hone carriers
- Assembly / disassembly of crankshaft - bearing caps or bearing ladder frames (bed plates)
- Insert and tighten with screws
- Assembly of bearing shells
- Assembly of cup plugs
- Leak test
- End of line inspection station

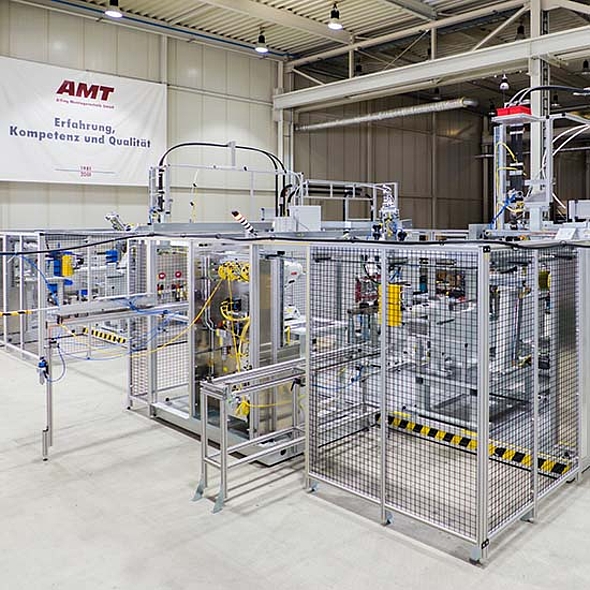

Assembly of Valve Seats and Valve Guides - Fully Automatic
Assembly machines for the assembly of valve seats and valve guides integrate the following processes:
- Automatic loading and unloading of work piece
- Feeding of seats and guides with an inspection of orientation, length or diameter
- Freezing of the seats and guides in a nitrogen bath in accordance with customer specifications
- Lubricating of the seat pockets and guide
- Insertion of seats and guides with servo processes
- Monitoring of the press process through integrated force/distance monitoring

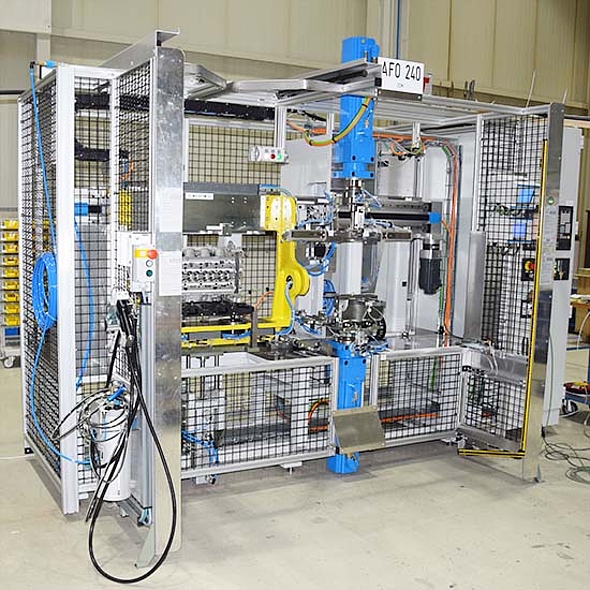

Assembly of Valve Seats and Valve Guides Semi-Automatic (Offline)
Semi-automatic assembly stations for the assembly of valve seats and valve guides integrate the following processes:
- Manual loading and unloading of work piece
- Manual lubricating of the seats and guides
- Manual insertion of seats and guides with Poka Yoke equipment
- Cooling of the seats and guides in a nitrogen bath in accordance with customer specifications
- Automatic insertion of seats and guides with servo process
- Monitoring of the press process through integrated force/distance monitoring
- Display of the results on the screen

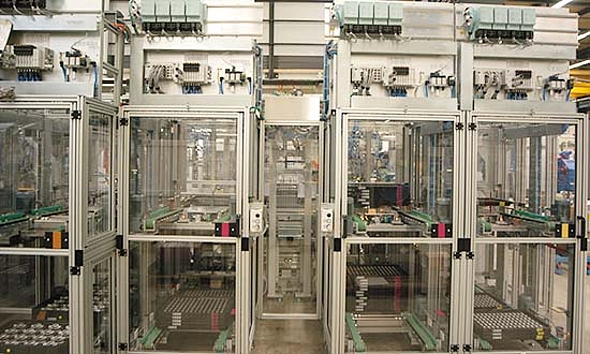

Assembly of Bearing Caps - Fully Automatic
Assembly machines for the assembly of camshaft bearing caps or crankshaft bearing caps integrate the following processes:
- Automatic loading and unloading of work piece
- Provision of bearing caps as bulk materials, on pallets or on feed conveyors
- Feeding of the bearing caps
- Placement of the bearing caps
- Feeding and inserting bolts
- Fastening the bearing cap
- Torque/angle monitoring of fastening process

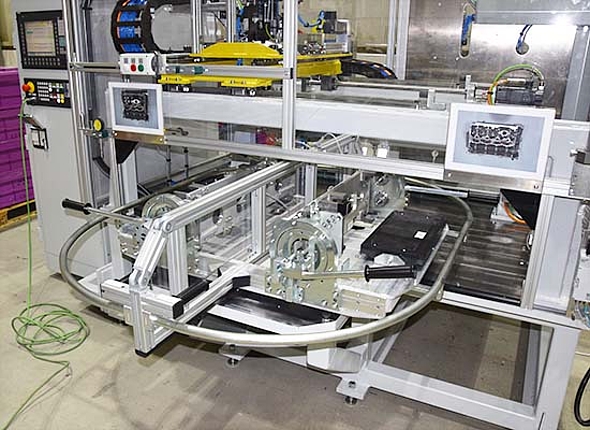

Assembly of Bearing Caps - Semi-Automatic (Offline)
Semi-automatic assembly stations for the assembly of camshaft bearing caps integrate the following processes:
- Manual loading and unloading of work piece
- Feeding of bearing caps as bulk materials or on pallets
- Manual placement of the bearing cap with the help of insertion masks
- Manual insertion of the bolts and caps
- Automatic fastening of the bearing cap
- Torque/angle monitoring of fastening process
- Display of the results on the screen

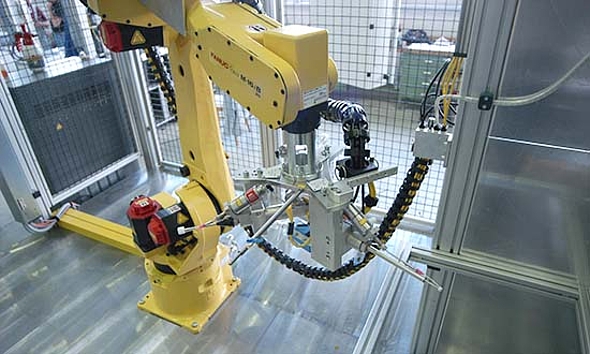

Assembly of Cup Plugs
Assembly machines for cup plugs integrate the following processes:
- Automatic loading and unloading of work piece
- Provision and insertion of the assembly parts through bowl or step feeders
- Automatic Loctite equipment applies bead of Loctite
- Insertion of ball and cup plugs
- Placement of KOENIG Expanders
- Integrated leak test (optional)

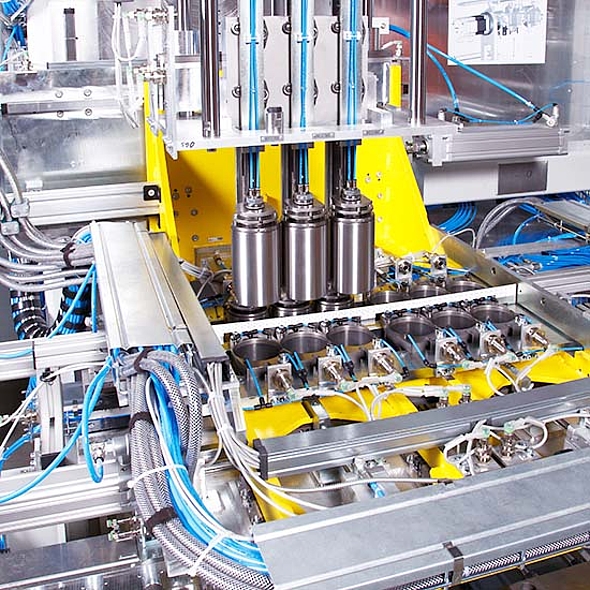

Insertion of Cylinder Liners using Heat
Assembly systems for the joining of cylinder liners in cylinder bores integrate the following processes:
- Automatic loading and unloading of work piece
- The motor blocks are heated up to approximately 200 degrees in an oven
- A heated motor block is transferred to a joining station
- A robot transfers the tempered liners to the joining station.
- The liners are arranged in the joining station and added to the cylinder bores.
- Cooling down of the motor block to the ambient temperature
- The result of the joining process is monitoring in a subsequent test station.
